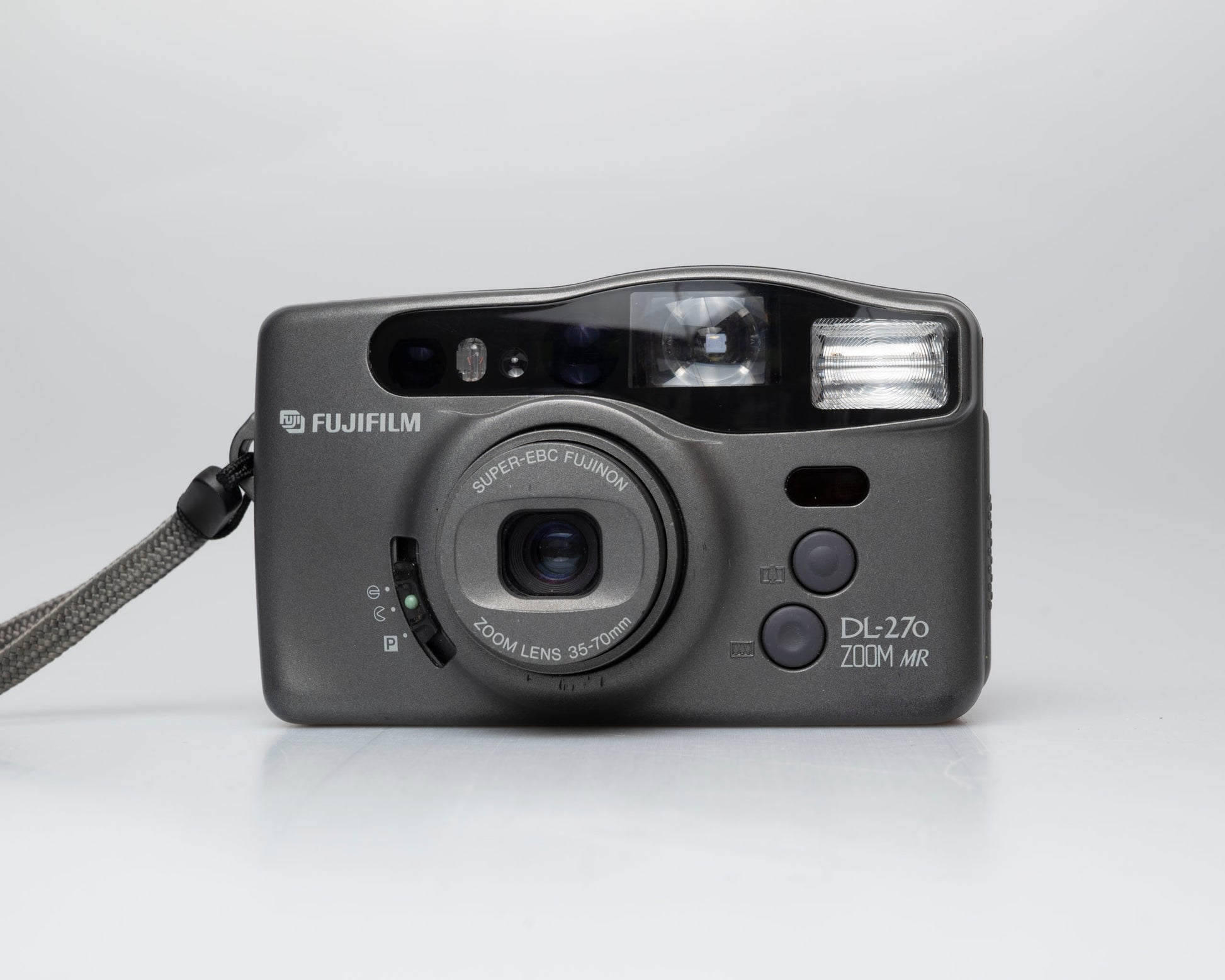

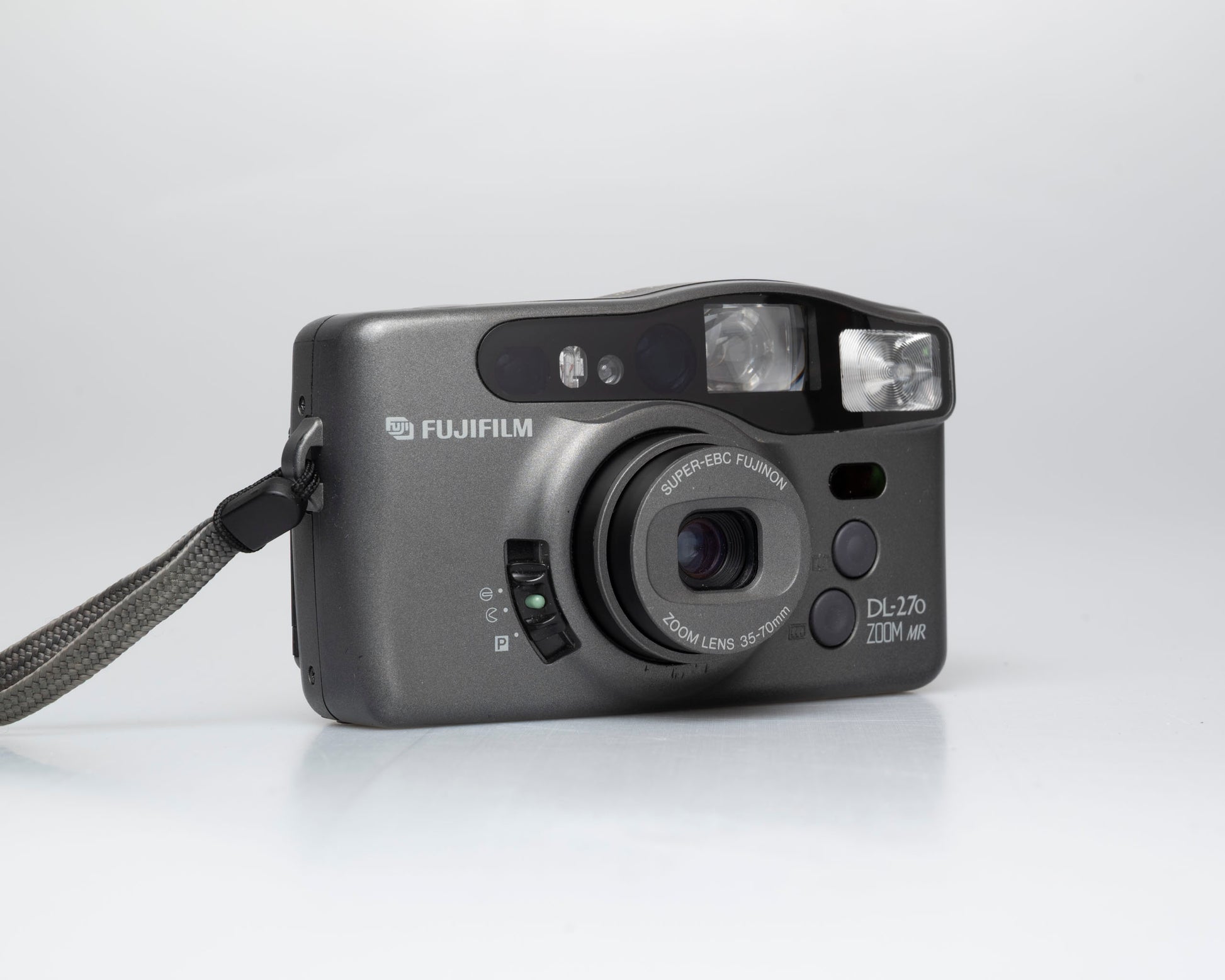

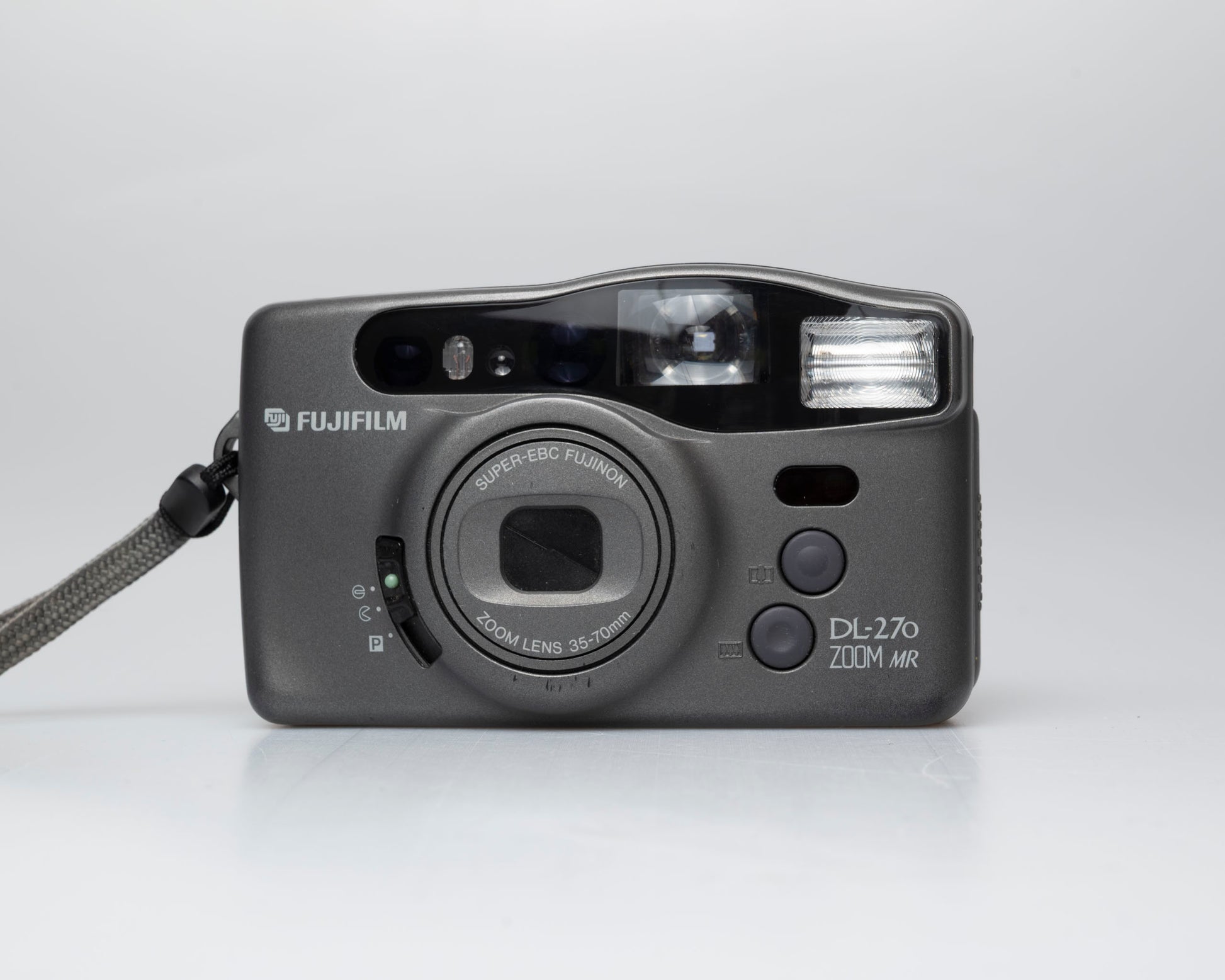

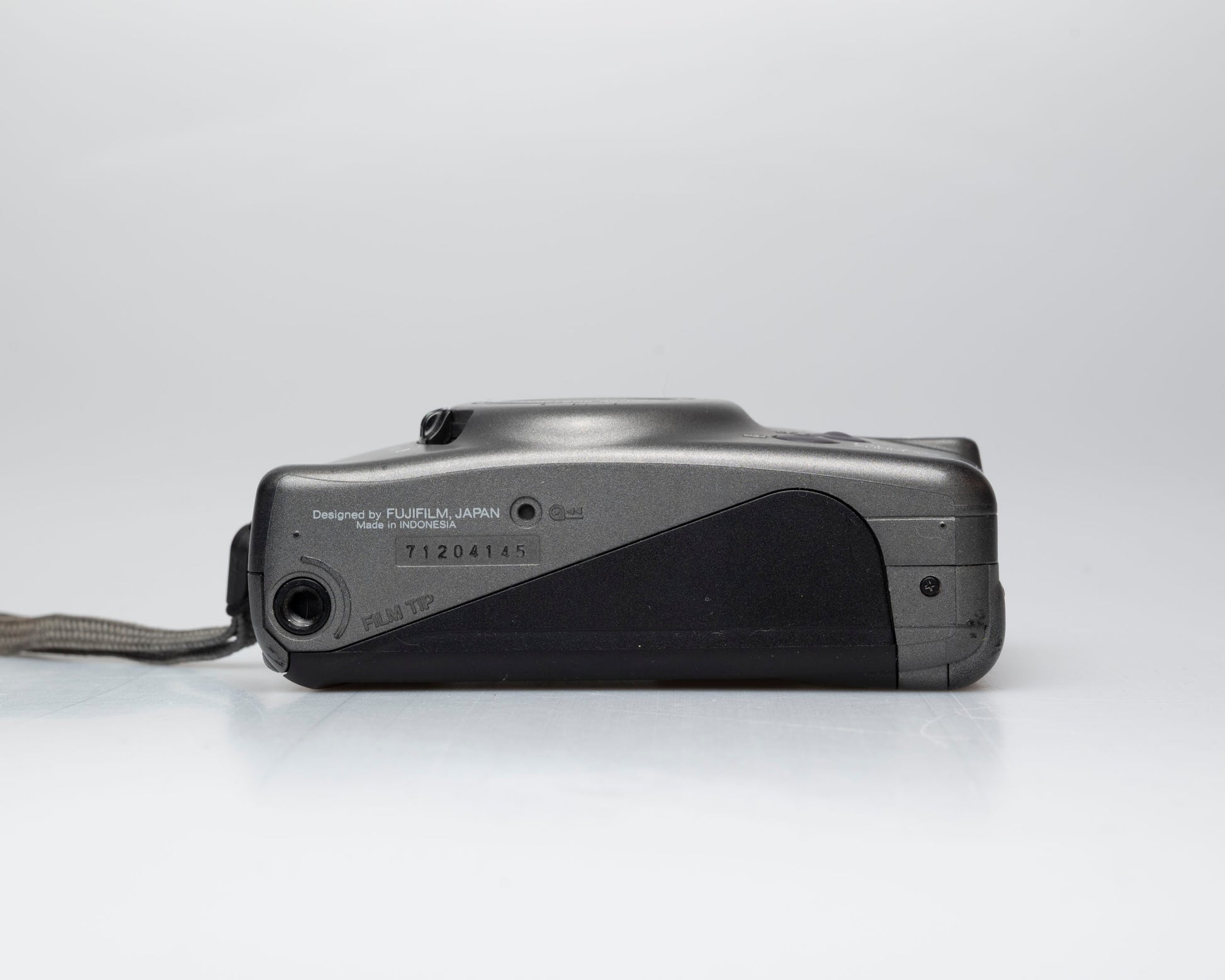

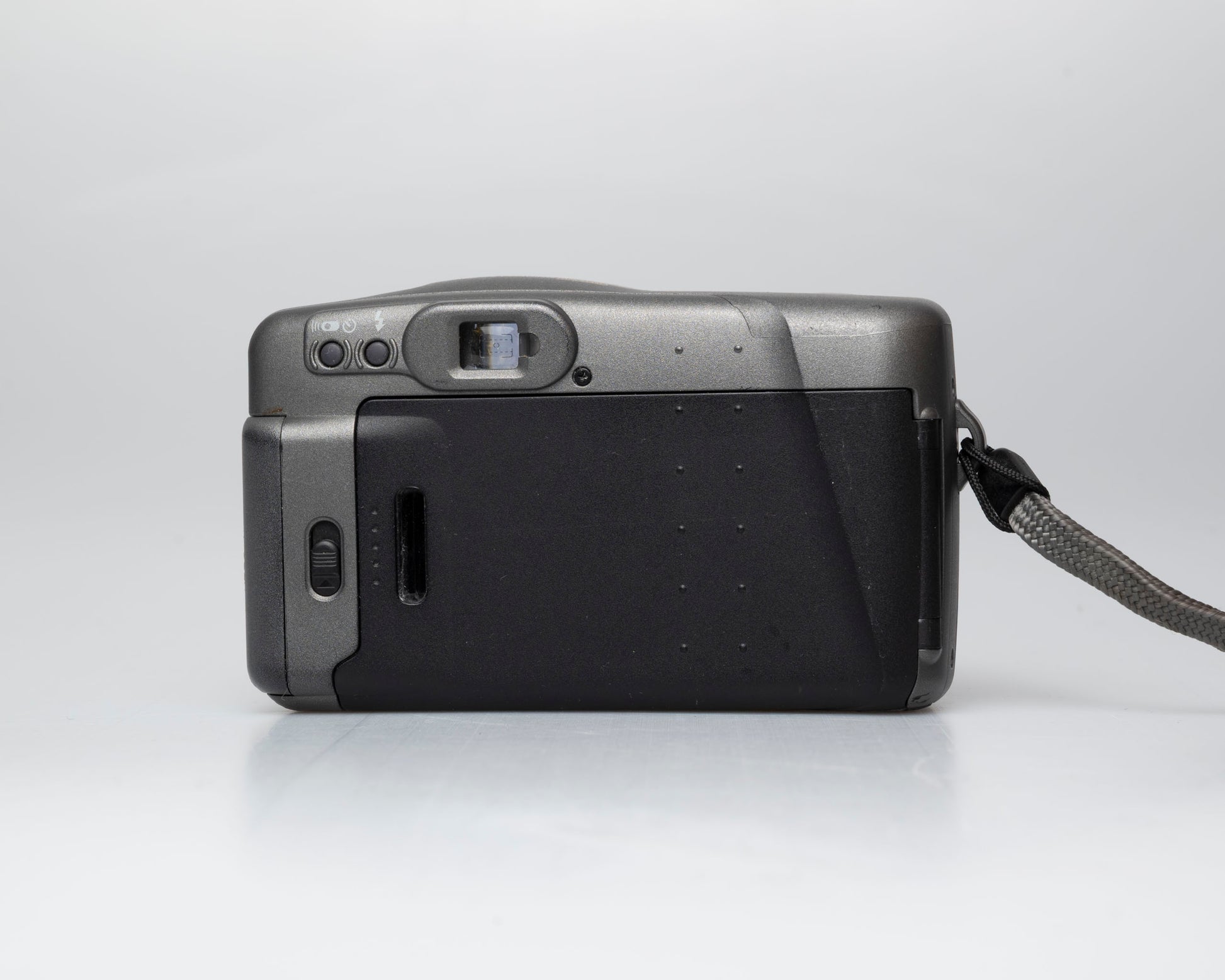

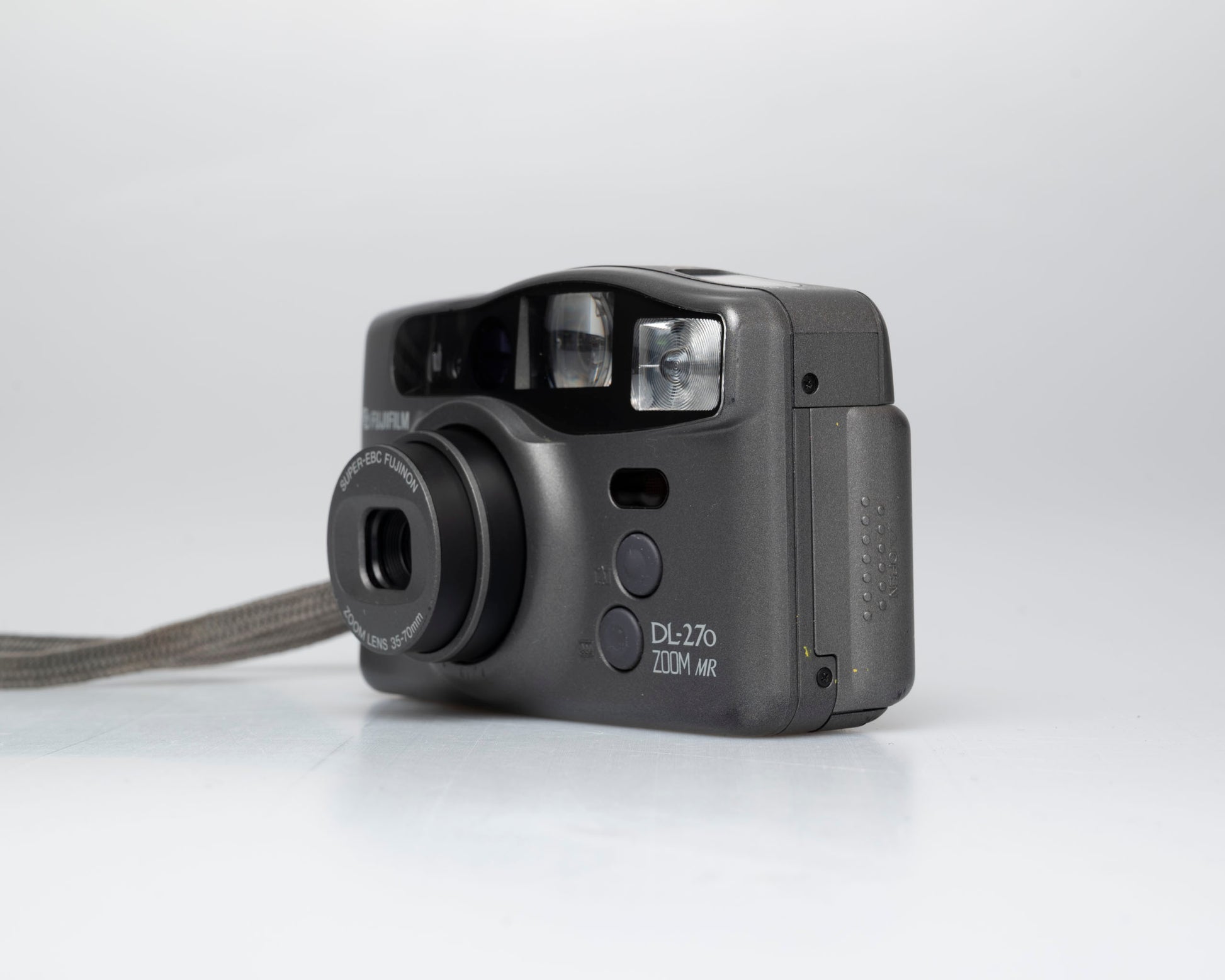

Fujifilm DL-270 Zoom MR 35mm camera (serial 71204145)

The Fujifilm DL-270 MR is a user-friendly but good quality 35mm point and shoot featuring a 35-70mm zoom lens.

Like most Fujifilm cameras of the era, it uses a quick and foolproof 'drop-in loading' system for film.

This camera was also sold as the DL-270 (the black coloured version), and Discovery 270 Zoom.

Battery information

This camera is powered by a CR123A 3-volt lithium battery (available as an add-on).

Battery capacity: "A new lithium battery will provide power for taking about 300 pictures, including 150 with flash (as tested according to Fujifilm's battery testing procedure)."

Condition notes

The camera is in very good functional and cosmetic condition. It was tested with a battery and film installed and all functions are working correctly. We also verified its autofocus is working with good accuracy.

Manual

https://www.cameramanuals.org/fuji_pdf/fujifilm_dl-270.pdf

Example photos

Here are some photos that other people have taken with this camera model (under its various monikers):
https://www.lomography.com/cameras/3367593-fujifilm-discovery-270-zoom/photos?order=popular
https://www.lomography.com/cameras/3345447-fuji-dl-270-zoom/photos?order=popular

Specifications

• Film: 135 (35 mm) DX roll film.
• Picture Size: Standard 35 mm size: 24 x 36 mm, switchable to panorama format.

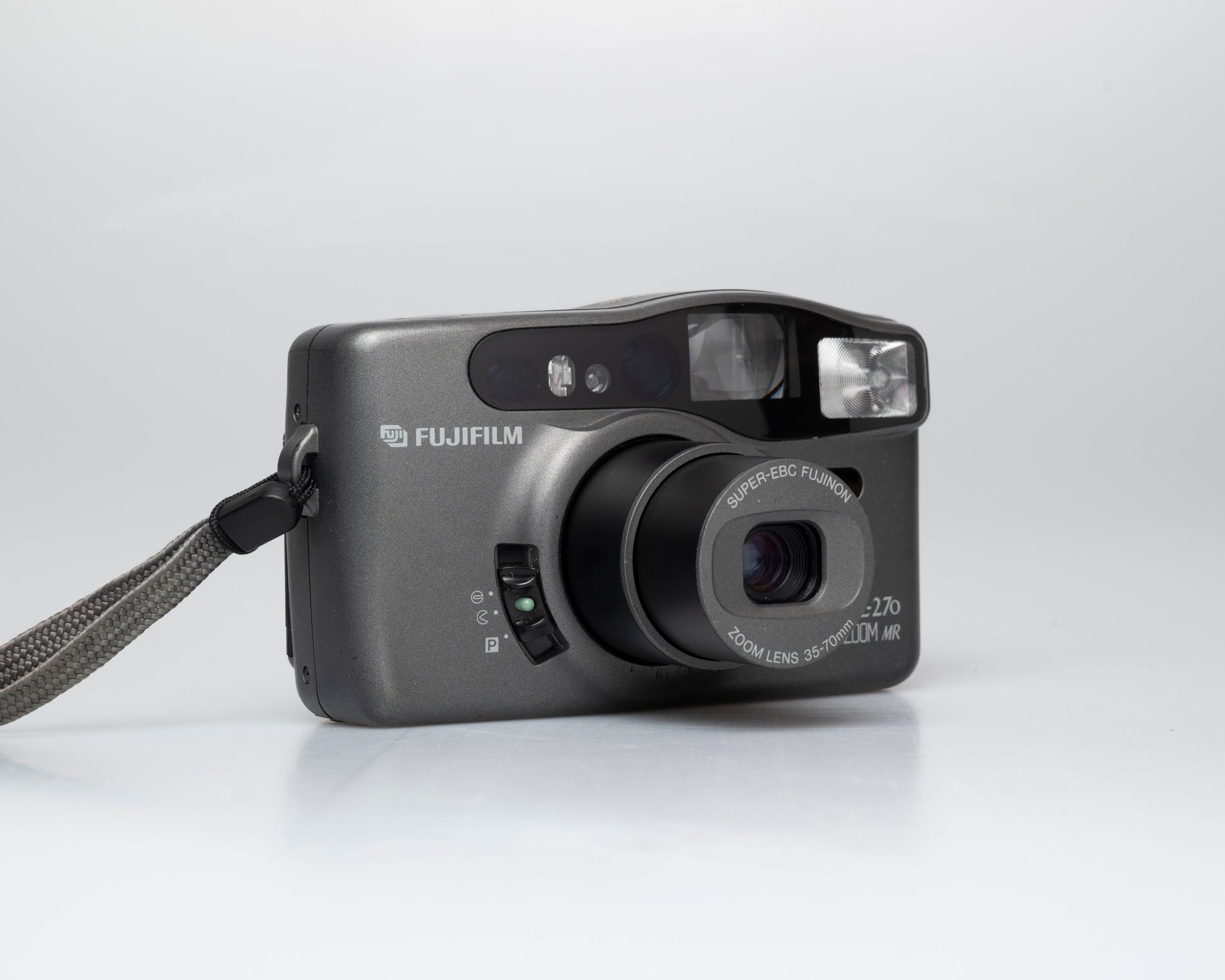

• Lens: Fujinon zoom lens, power zoom, f=35-70 mm, 1:5.0-9.5, 5 components, 5 elements.
• Finder: Albada zoom finder, 0.4-0.72X magnification, bright frame, panorama frame, autofocus spot, parallax correction mark, autofocus lamp (next to finder eyepiece).
• Focusing: Active type autofocusing from 0.65 m-infinity (at f=70 mm), 0.9m-infinity at other focal lengths, provided with autofocus lock.
• Autofocus Lamp: Turns on and glows when subject is in sharp focus, blinks when subject is too close.
• Shutter: Programmed electronic shutter.
• Exposure Control: Automatic, EV 10.4 (9*)-17 (wideangle) and EV 12.8 (9*)-17 (telephoto), (* indicates values for flash off mode).
• Film Speed Setting: Automatic with ISO 50-1600 DX roll film.

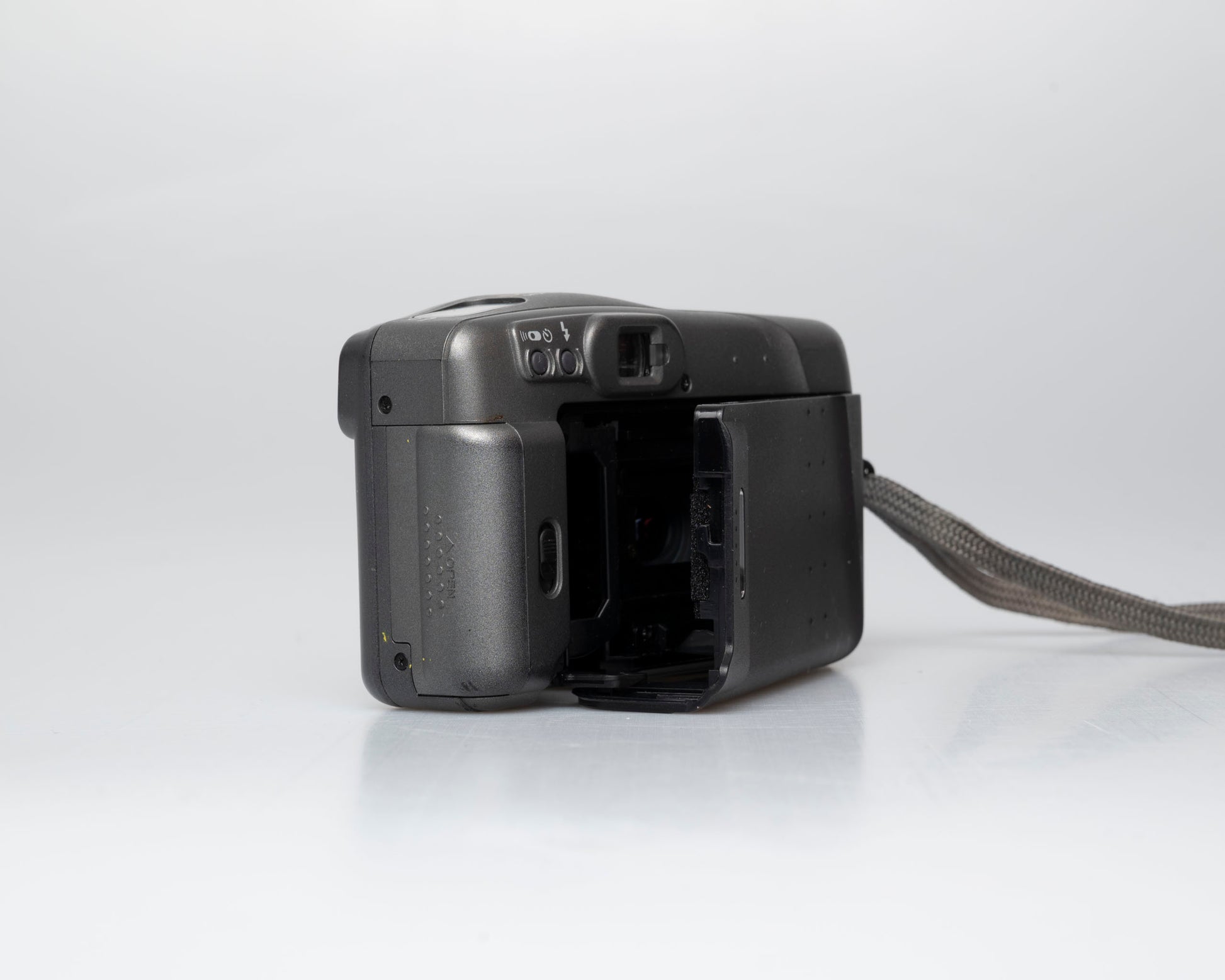

• Film Loading: Drop-in system, automatic threading.
• Film Advance: Automatic (motorized), film prewind system, re­winding unnecessary, provision for mid-roll rewinding.

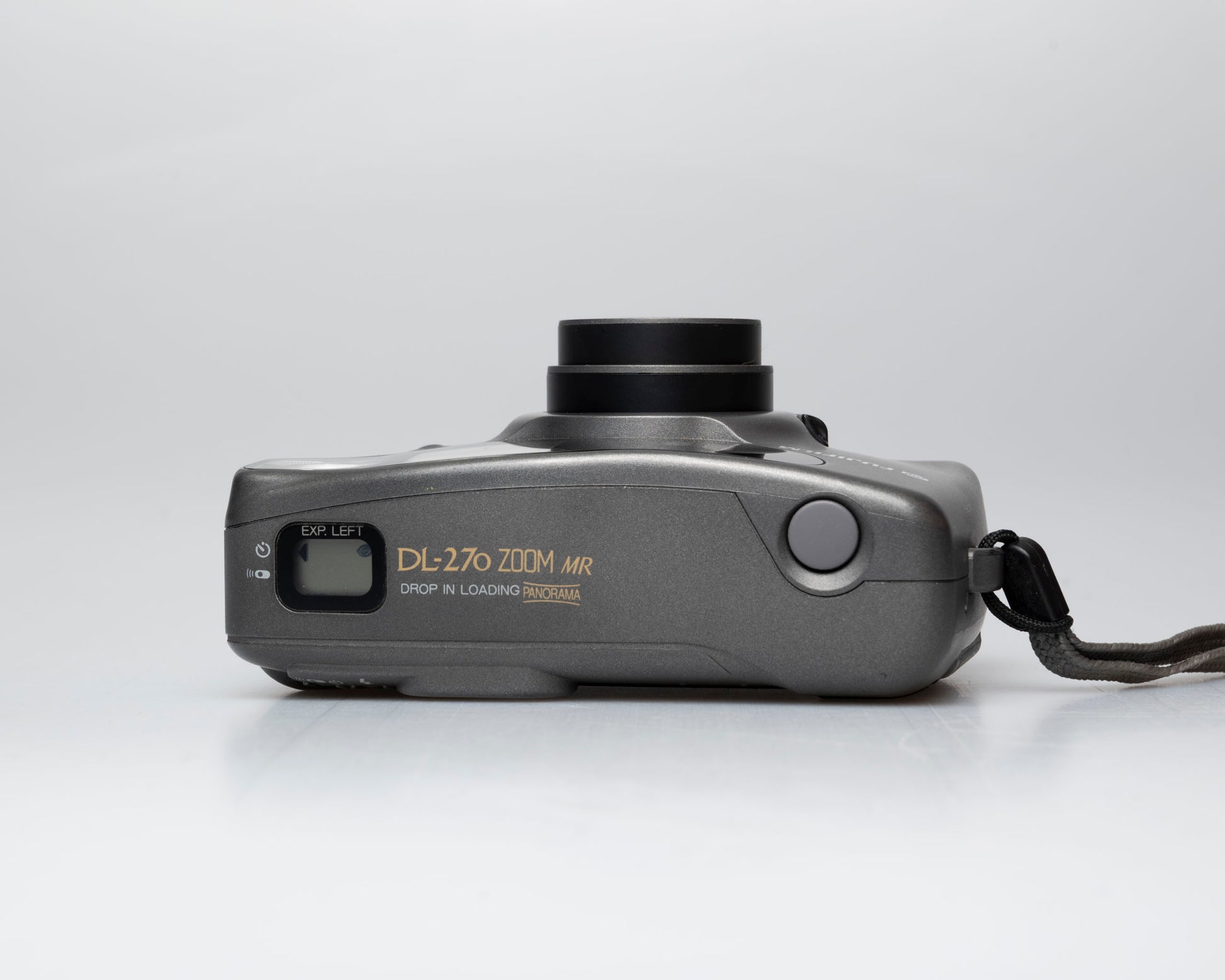

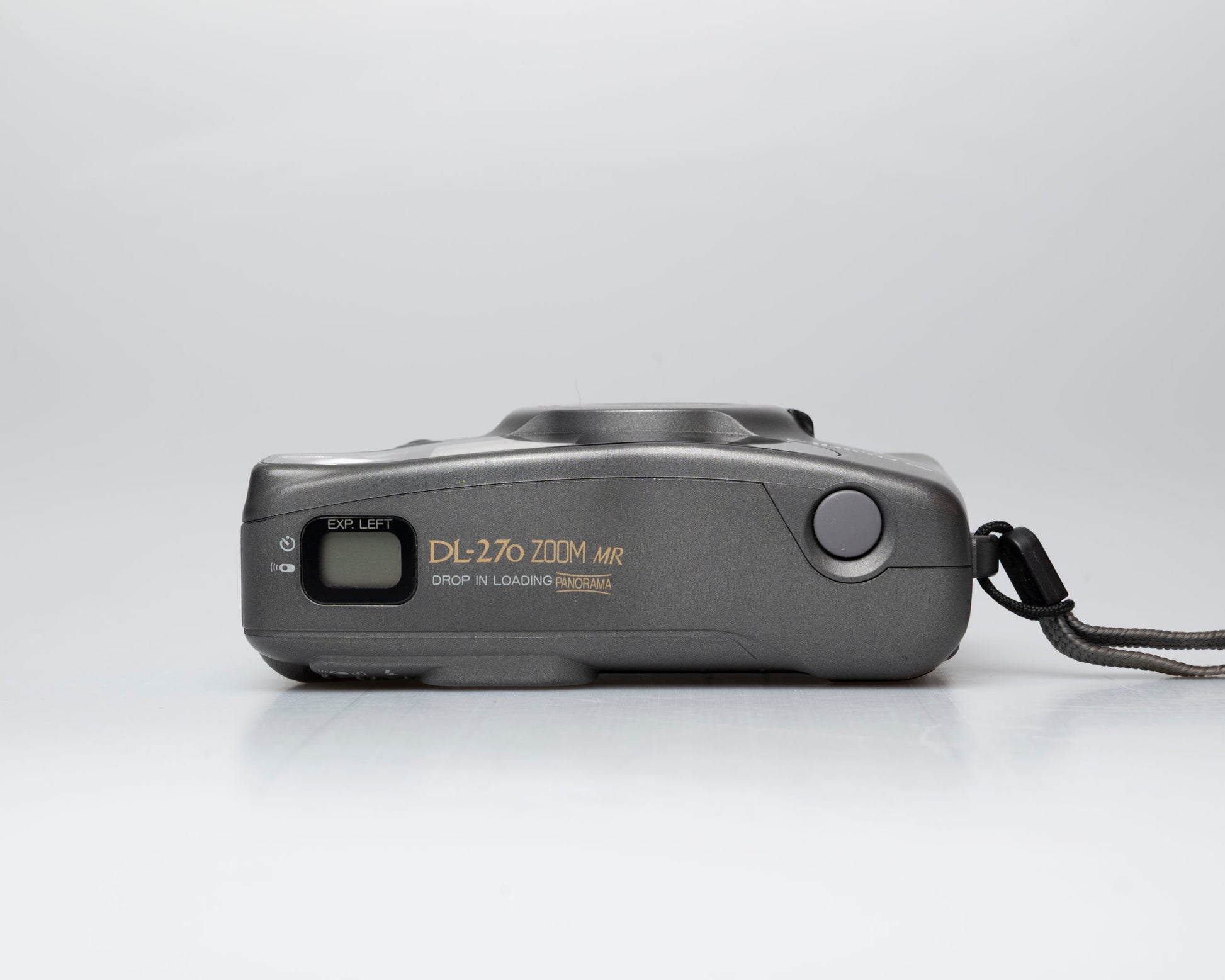

• LCD Signs: Exposure counter, flash mode signs (flash charging, red-eye reducing, fill-in flash, and flash off signs), self-timer mode and remote control mode signs.
• Flash: Autoflash, red-eye reducing, fill-in flash, and flash off modes, electronically controlled flash- matic exposure control, about 5 sec. recycle time.
• Self-timer: Electronically controlled, about 10 sec. delay, can be switched off in mid-run, provided with countdown lamp.
• Power Source: One lithium battery (Fujifilm-Eveready CR 123A or Panasonic CR 123A).
• Remote Control Switch: Infrared system, operates camera shutter, about 5 m effective range from camera front (available as camera accessory or separately).
• Others: Built-in lens cover (lens cover serves as safety lock when closed), film confirmation window, tripod socket, provision for remote control shutter release.
• Dimensions and Weight: Camera: 123 x 75 x 45 mm, 242 g. (without battery).
